特点

1、适用于食品、医药、化工、化妆品行业中粉剂物品的计量包装，如：卤料粉、奶粉、蛋白质粉、咖啡粉等。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.

２、可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

３、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

４、包装材料：聚丙烯/聚乙烯，铝箔/聚乙烯，涤纶/镀铝/聚乙烯，尼龙/增强型聚乙烯，纸/聚乙烯等。

Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,

                Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

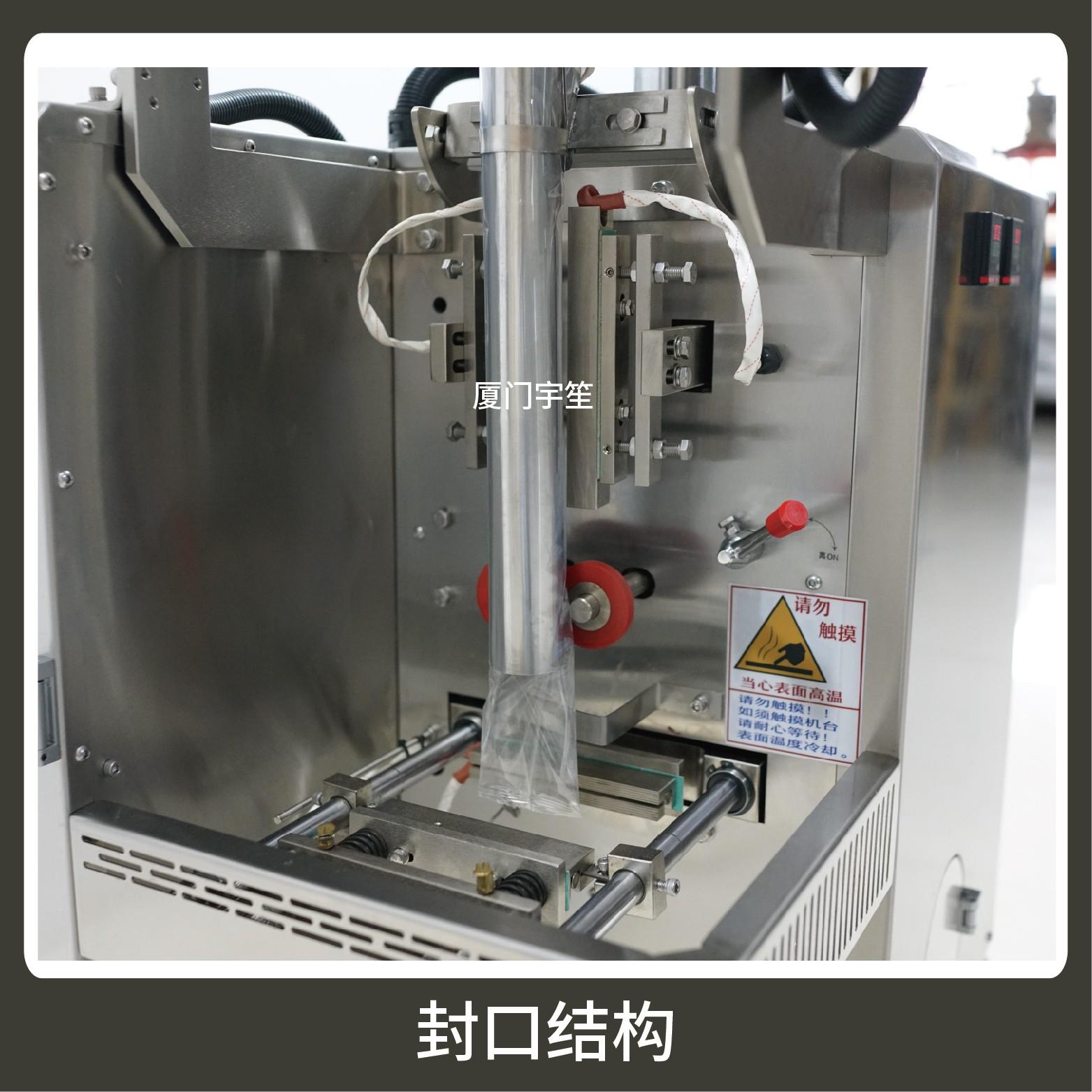

封口方式 Sealing Type

三边封口Three sides Sealing/四边封口Four sides Sealing/背封封口Back sealing

技术参数

Technical Parameters

计量范围：1 - 100 g（3 - 100 ml）

Measuring Scope

制袋尺寸：长( L )  :  30 - 170 mm

Bag Size 宽( W )  :  30 - 130 mm

包装速度：30 - 80 bags/min

Packing Speed

外型尺寸：810 * 630 * 1550 mm

Dimension ( L * W * H )

整机重量：300 kg

Weight

总 功 率：220V / 50Hz / 1.4kw

Total Power
