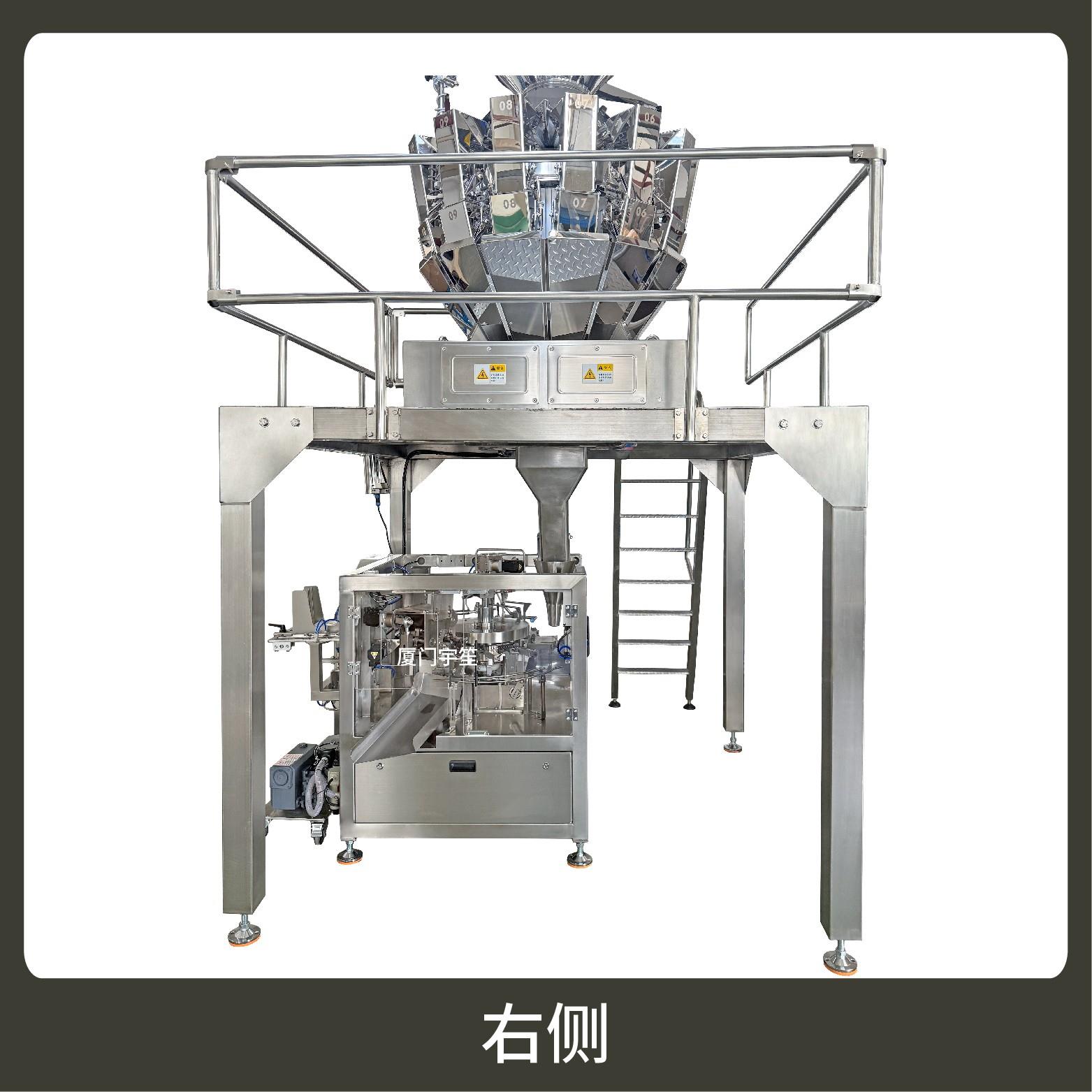

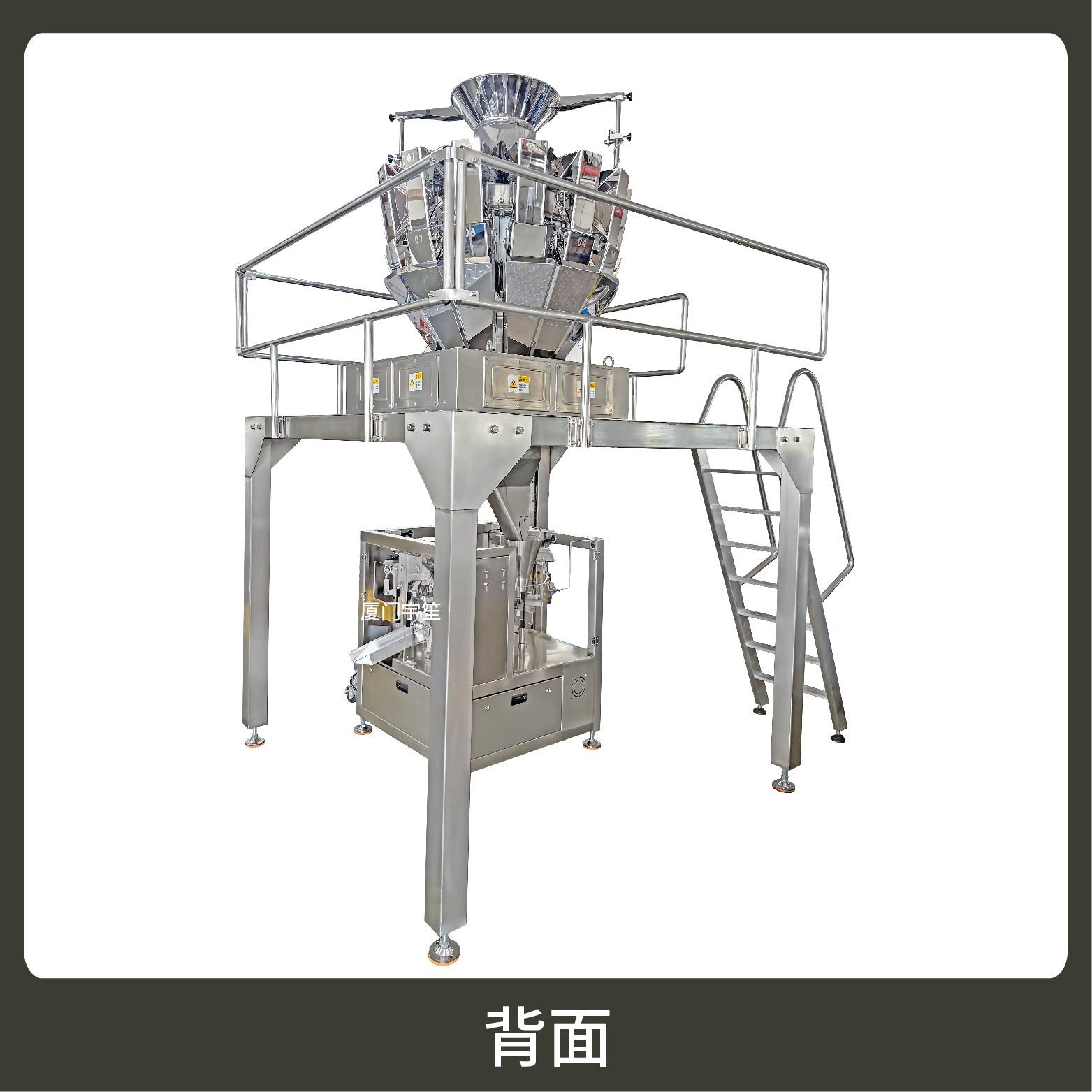

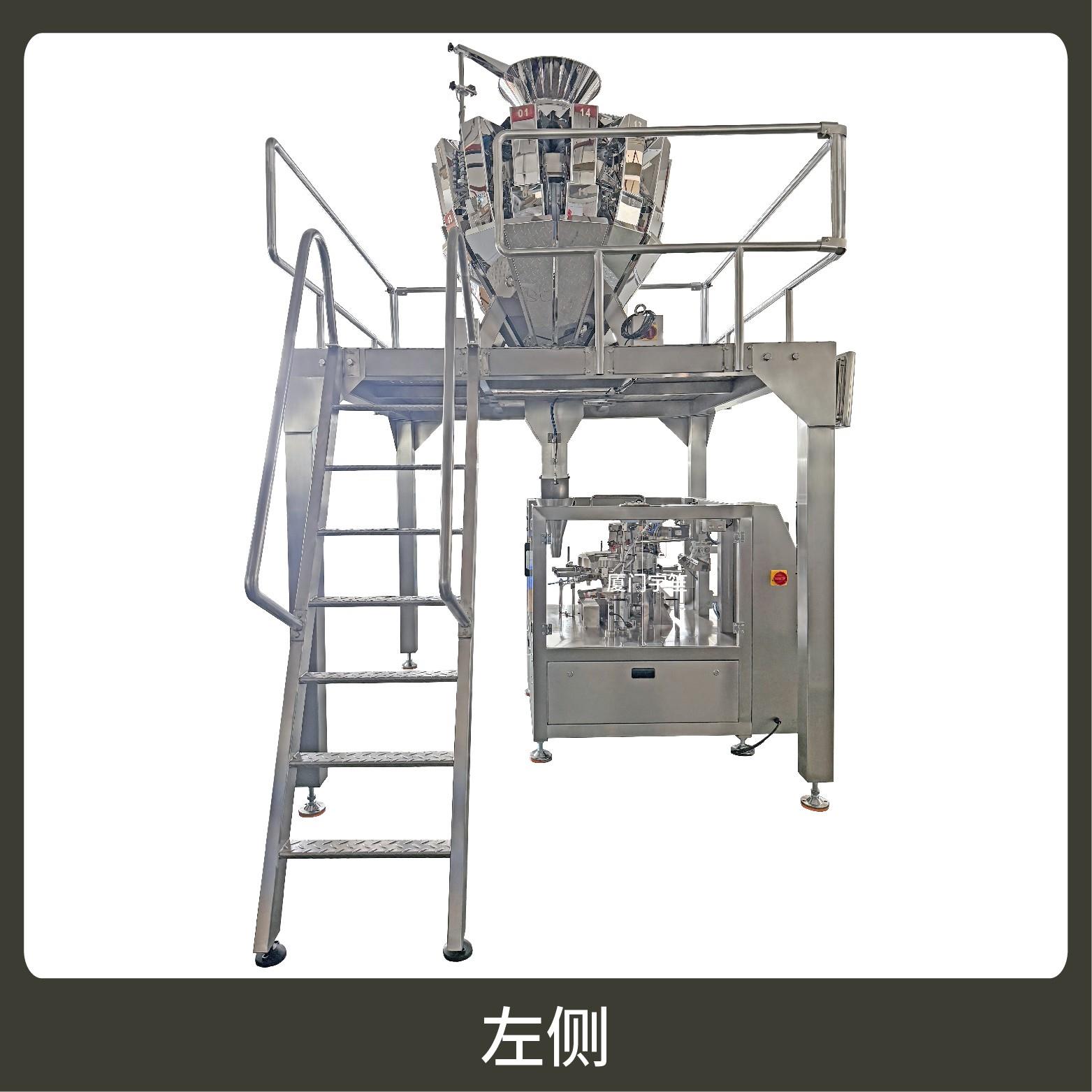

YS-XZ6-180A旋转给袋式高速包装机（电子秤）
YS-XZ6-180A 旋转给袋电子秤包装机
特 点 Characteristic

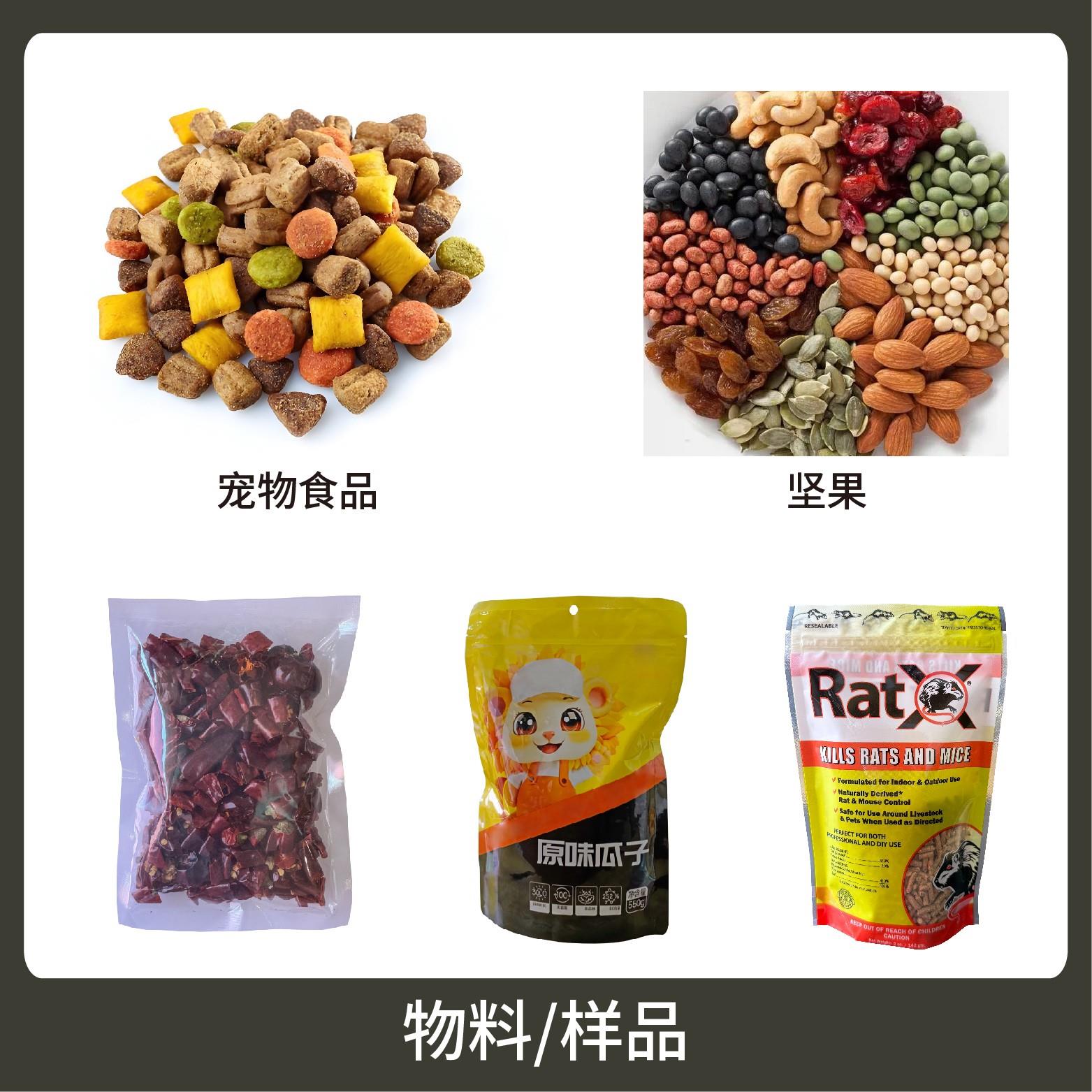

1、可适配不同规格、材质的预制袋（如自立袋、拉链袋、常规袋等），通过简单调整即可切换袋型，速度快、效率高，稳定性好；支持瓜子、花生、坚果、宠物食品等物料的计量包装。
It adapts to pre-made bags of different specifications and materials, including stand-up pouches, zipper pouches and general pouches. Bag styles can be switched with easy adjustments. The machine runs at high speed with great efficiency and stable performance. It is suitable for the weighing and packaging of melon seeds, peanuts, nuts, pet food and other materials.
2、全伺服控制系统调速技术确保动作精准、运行平稳；配备空袋监测、不开袋不封口等安全机制，避免物料浪费和包装失败。
Full servo control for precise and stable operation. Equipped with empty bag detection and no-bag no-filling function to reduce waste.
3、设备采用间歇式旋转平台，多个工位（如取袋、开袋、灌装、封口）沿圆周分布，通过旋转实现工序的连续衔接，结构紧凑，节省空间，且能高效处理高流量包装需求。
The machine adopts an intermittent rotating platform with multiple stations (bag feeding, bag opening, filling, sealing, etc.) distributed circularly. Continuous process connection is realized by rotation, with compact structure, space saving, and high efficiency for high-volume packaging requirements.
4、包装材料：复合膜，如：纯铝，镀铝等预制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
封口方式 Sealing Type
预制袋Prefab bag
技术参数
Technical Parameters
计量范围：10-1000g（视物料特性而定）
Measuring Scope
预制袋尺寸：长( L ) : 100-240mm
Bag Size 宽( W ) : 80-180mm
包装速度：20-70bags/min（视物料特性而定）
Packing Speed
外型尺寸：2820 * 2000 * 3330mm
Dimension ( L * W * H )
整机重量：约400kg（主机）
Weight
总 功 率：220V / 50-60Hz / 6kw
Total Power
1、可适配不同规格、材质的预制袋（如自立袋、拉链袋、常规袋等），通过简单调整即可切换袋型，速度快、效率高，稳定性好；支持瓜子、花生、坚果、宠物食品等物料的计量包装。
It adapts to pre-made bags of different specifications and materials, including stand-up pouches, zipper pouches and general pouches. Bag styles can be switched with easy adjustments. The machine runs at high speed with great efficiency and stable performance. It is suitable for the weighing and packaging of melon seeds, peanuts, nuts, pet food and other materials.
2、全伺服控制系统调速技术确保动作精准、运行平稳；配备空袋监测、不开袋不封口等安全机制，避免物料浪费和包装失败。
Full servo control for precise and stable operation. Equipped with empty bag detection and no-bag no-filling function to reduce waste.
3、设备采用间歇式旋转平台，多个工位（如取袋、开袋、灌装、封口）沿圆周分布，通过旋转实现工序的连续衔接，结构紧凑，节省空间，且能高效处理高流量包装需求。
The machine adopts an intermittent rotating platform with multiple stations (bag feeding, bag opening, filling, sealing, etc.) distributed circularly. Continuous process connection is realized by rotation, with compact structure, space saving, and high efficiency for high-volume packaging requirements.
4、包装材料：复合膜，如：纯铝，镀铝等预制袋。
Packing material： composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.
计量范围：10-1000g（视物料特性而定）
Measuring Scope
预制袋尺寸：长( L ) : 100-240mm
Bag Size 宽( W ) : 80-180mm
包装速度：20-70bags/min（视物料特性而定）
Packing Speed
外型尺寸：2820 * 2000 * 3330mm
Dimension ( L * W * H )
整机重量：约400kg（主机）
Weight
总 功 率：220V / 50-60Hz / 6kw
Total Power
可适配不同规格、材质的预制袋（如自立袋、拉链袋、常规袋等），通过简单调整即可切换袋型，速度快、效率高，稳定性好；支持瓜子、花生、坚果、宠物食品等物料的计量包装。
It adapts to pre-made bags of different specifications and materials, including stand-up pouches, zipper pouches and general pouches. Bag styles can be switched with easy adjustments. The machine runs at high speed with great efficiency and stable performance. It is suitable for the weighing and packaging of melon seeds, peanuts, nuts, pet food and other materials.
