YS-GHF280K 塑封多功能颗粒包装机

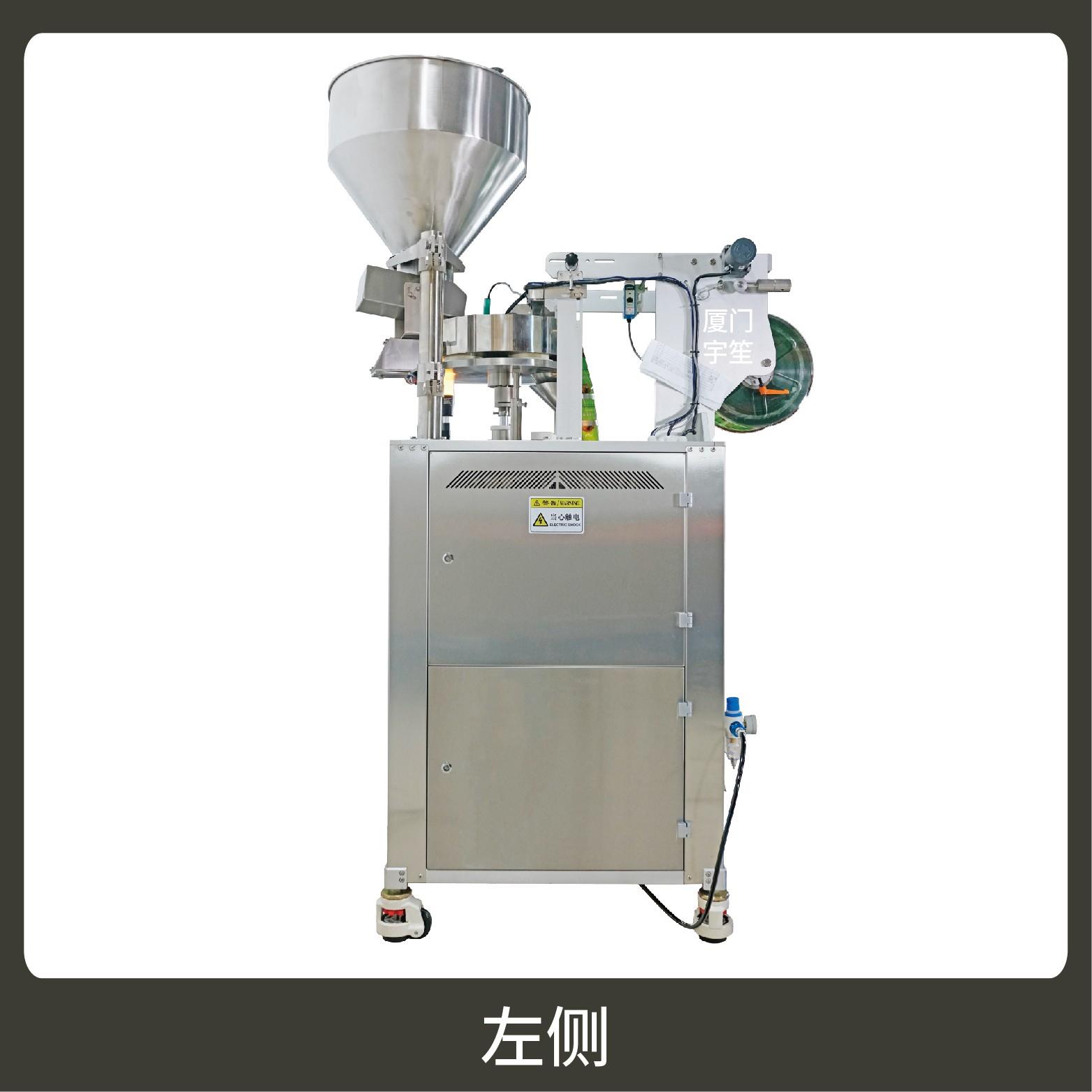

YS-GHF280 Multi-function plastic-envelop machine
YS-GHF280 塑封多功能颗粒包装机
特点：
１、适用于干果、零食、烘焙食品中糖果、麦丽素、巧克力、尖角脆等颗粒物品的计量包装。
Suitable for the metering and packaging of granular items in dried fruits, snacks, and baked goods, such as candies, malted milk balls, chocolates, and crispy horns.
２、一机多用，一键切换封口形式（三边封、背封、三角袋），可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。
This machine has multiple purposes, one key switch sealing form (three side sealing, back sealing, triangle bag),all the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包装材料：复合膜。
Packaging materials：composite film.
技术参数：
计量范围：1 - 100 g
Measuring Scope
制袋尺寸Bag size:长( L ) : 80 - 140 mm
三边封膜宽：120-230mm
Three-side sealing film width
背封膜宽：120-280mm
Back sealing film width
三角袋最大膜宽：160mm
Triangle bag maximum film width
包装速度：20 - 60 bags / min
Packing Speed
外型尺寸：810 * 630 * 1550 mm
Dimension ( L * W * H )
整机重量：220 kg
Weight
总 功 率：AC220V / 50 - 60Hz / 2.5kw
Total Power
气 源：≥0.6Mpa
Gas source
１、适用于干果、零食、烘焙食品中糖果、麦丽素、巧克力、尖角脆等颗粒物品的计量包装。
Suitable for the metering and packaging of granular items in dried fruits, snacks, and baked goods, such as candies, malted milk balls, chocolates, and crispy horns.
２、一机多用，一键切换封口形式（三边封、背封、三角袋），可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。
This machine has multiple purposes, one key switch sealing form (three side sealing, back sealing, triangle bag),all the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包装材料：复合膜。
Packaging materials：composite film.
计量范围：1 - 100 g
Measuring Scope
制袋尺寸Bag size:长( L ) : 80 - 140 mm
三边封膜宽：120-230mm
Three-side sealing film width
背封膜宽：120-280mm
Back sealing film width
三角袋最大膜宽：160mm
Triangle bag maximum film width
包装速度：20 - 60 bags / min
Packing Speed
外型尺寸：810 * 630 * 1550 mm
Dimension ( L * W * H )
整机重量：220 kg
Weight
总 功 率：AC220V / 50 - 60Hz / 2.5kw
Total Power
气 源：≥0.6Mpa
Gas source
适用于干果、零食、烘焙食品中糖果、麦丽素、巧克力、尖角脆等颗粒物品的计量包装。
Suitable for the metering and packaging of granular items in dried fruits, snacks, and baked goods, such as candies, malted milk balls, chocolates, and crispy horns.
